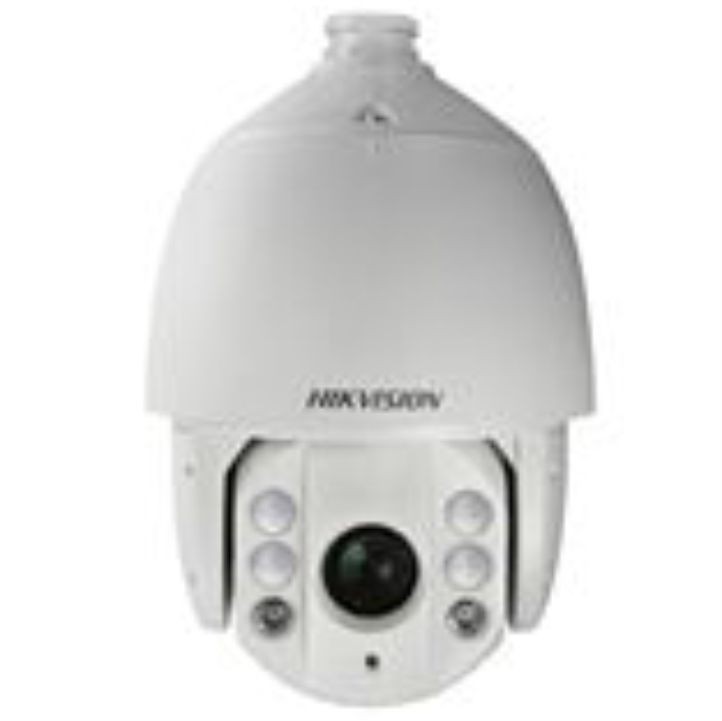

DS-2DE7232IW-AE

DS-2DE7232IW-AE

14.470.400đ 25.840.000đ -43%
HIKVISION

2MP 32X Network IR PTZ Camera
• 1/2.8" progressive scan CMOS
• Up to 1920 × 1080@60fps resolution
• Min. illumination:
    Color: 0.005 Lux @(F1.6, AGC ON)
    B/W: 0.001 Lux @(F1.6, AGC ON)
• 0 Lux with IR
• 32× optical zoom, 16× digital zoom
• WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
• Up to 150 m IR distance
• 24 VAC & Hi-PoE
• Support H.265+/H.265 video compression

Còn hàng
1

Camera IP Speed Dome hồng ngoại 2MP, chuẩn nén H.264, H.265+

  • Cảm biến CMOS 2MP, 1/2.8"
  • Chuẩn nén H.265+/H.265/H.264+/H.264
  • Giảm nhiễu số 3D DNR
  • Chống ngược sáng thực True WDR
  • Siêu nhạy sáng Powered By DarkFighter, Color: 0.005lux/F1.6, B/W: 0.001lux/F1.6
  • Zoom quang: 32x, Zoom số: 16X
  • Hồng ngoại 150m IR
  • Độ phân giải 1920*1080,60fps
  • Pan Speed: 0.1° -160°/s, Tilt Speed: 0.1° -120°/s
  • Hỗ trợ PoE & nguồn 24VAC.
  • Tính năng theo dõi thông minh, phát hiện thông minh.


DS-2DE7232IW-AE

Camera

Image Sensor:



1/2.8" HD progressive scan CMOS

Effective Pixels:



1920(H)x1080(V)

Signal System:



PAL/NTSC

Minimum Illumination:



Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001Lux @(F1.6, AGC ON)
0 Lux with IR

White Balance:



Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

AGC:



Auto/Manual

BLC:



ON/OFF

HLC:



Support

Smart defog:



Support

WDR:



120dB

Shutter Time:



1-1/10,000s

Day& Night:



ICR

Digital Zoom:



16X

Privacy Masking:



24 privacy masks programmable; optional multiple colors and mosaics

Auto Focus:



Auto / Semi-automatic / Manual

Lens

Focal Length:



4.8 mm to 153 mm, 32× optical zoom

Zoom Speed:



Approx. 5.6 s (optical lens, wide-tele)

Angle of View:



Horizontal field of view: 55.6° to 2.04° (Wide-Tele)
Vertical field of view: 32.4° to 1.14° (Wide-Tele)
Diagonal field of view: 63° to 2.34° (Wide-Tele)

Minimum Working Distance:



10-1,500mm(Wide-Tele)

Aperture Range:



F1.2 to F4.4

Pan & Tilt

Pan Range:



360°endless

Pan Speed:



Pan Manual Speed: 0.1°-160°/s,
Pan Preset Speed: 240°/s

Tilt Range:



-15°-90° (Auto Flip )

Tilt Speed:



Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed: 200°/s

Proportional Zoom:



Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:



300

Patrol:



8 patrols, up to 32 presets per patrol

Pattern:



4 pattern scans, record time over 10 minutes for each scan

Power-off Memory:



Support

Park Action:



Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PTZ Position Display:



ON/OFF

Smart-tracking:



Support

Infrared

IR irradiation distance:



150m

IR irradiation angle:



Adjustable by zoom

Alarm

Alarm Input:



2

Input & Output

Audio Input:



1-ch audio input

Audio Output:



1-ch audio output

Network

Ethernet:



10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution:



1920×1080

Main Stream:



50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
50fps (1920 × 1080, 1280 × 960, 1280 × 720);
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream:



50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)

Third Stream:



50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)

Video Compression:



Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG

ROI encoding:



Support 4 areas with adjustable levels

Audio Compression:



G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Mode:



OFF/Audio input/Audio output

Protocols:



IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

No. of Simultaneous Users:



Up to 20 users

Three-Stream:



Support

Mini SD Card:



Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

User/Host Level:



Up to 32 users, 3 levels: Administrator, Operator and User

Security Measures:



User authentication (ID and PW), host authentication (MAC address)

Hik-Connect:



Support

Client GUI

Client:



iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser:



IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

General

Menu Language:



English

Power Supply:



24 VAC & Hi-PoE

Power Consumption:



Max.: 40 W (Max. 14 W for IR)

Working Temperature/Humidity:



-30 ℃-65℃(-22℉-149℉)(outdoor)
90% or less

Protection Level:



IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection

Mounting:



Various mounting modes optional

Material:



ADC 12, PC, PC+10%GF

Dimensions:



Φ220×353.4mm (Φ8.66”×13.91”)(Outdoor)

Weight (approx.):



4.5kg(9.92Ibs)



•    Sản phẩm nhập khẩu chính hãng HIKVISION
•    Cam kết 1 đổi 1 nếu sản phẩm có vấn đề về chất lượng hoặc do lỗi của nhà sản xuất.
•    Bảo hành trong suốt 24 tháng.
