DS-2DE4A225IW-DE

9.508.800đ ~~16.980.000đ~~ -43%

Nhà sản xuất:

HIKVISION

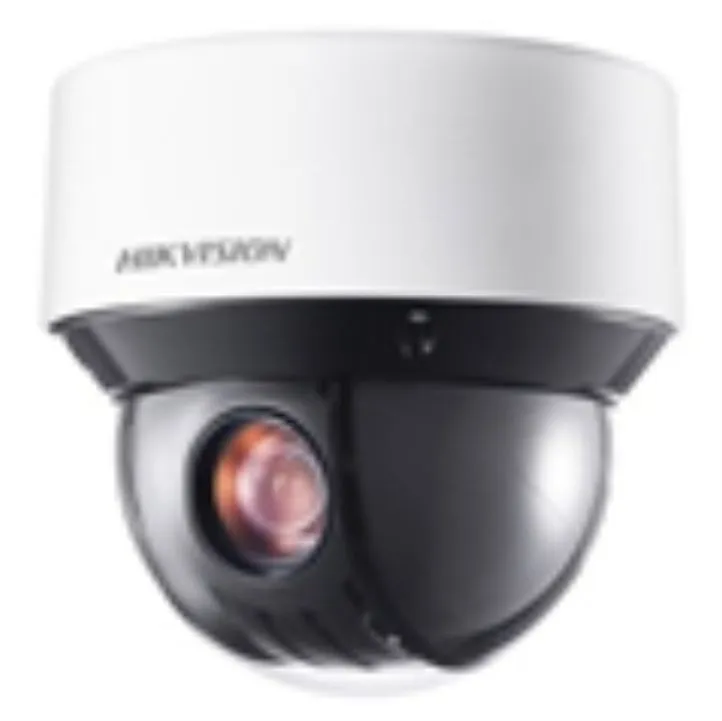

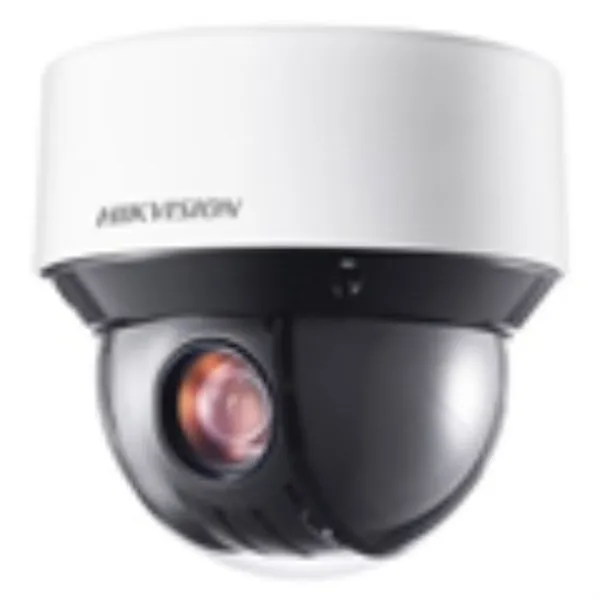

2MP 25x Network IR PTZ Camera
• 1/2.8" progressive scan CMOS
• Up to 1920 × 1080 resolution
• Ultra-low light:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
• 25× optical zoom, 16× digital zoom
• 120 dB WDR, 3D DNR, HLC, BLC
• Up to 50 m IR distance
• 12 VDC & PoE+ (802.3at, class4)
• Support H.265+/H.265 video compression

Tình trạng:

Còn hàng

Số lượng:

Mô tả
Bình luận

Camera IP speed dome hồng ngoại HD 2 MP

Độ phân giải 2MP
Cảm biến CMOS kích thước 1/2.8"
Hỗ trợ chuẩn nén H.265+/H.265/H.264+/H.264
Tính năng giảm nhiễu số 3D DNR
Chống ngược sáng thực WDR
Tính năng siêu nhạy sáng: 0.005lux/F1.6, B/W: 0.001lux/F1.6
Zoom Quang: 25x, Zoom số:16X
Độ phân giải 1920*1080:60fps
Hỗ trợ cấp nguồn PoE+ hoặc 12VDC
Tính năng Smart Tracking và Smart Detection.

DS-2DE4A225IW-DE

Camera
Image Sensor:		1/2.8" HD progressive scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
Smart defog:		Support
WDR:		120dB
Shutter Time:		1/1 to 1/30,000s
Day& Night:		ICR
Digital Zoom:		16×
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		4.8 mm to 120 mm, 25× optical
Zoom Speed:		Approx. 3.2 s (optical lens, wide-tele)
Angle of View:		Horizontal field of view: 57.6° to 2.5° (wide-tele) Vertical field of view: 34.4° to 1.4° (wide-tele) Diagonal field of view: 64.5° to 2.9° (wide-tele)
Minimum Working Distance:		10 to 1500mm (wide-tele)
Aperture Range:		F1.6 to F3.5

Pan & Tilt
Pan Range:		360°endless
Pan Speed:		Configurable, from 0.1°/s to 300°/s Preset Speed: 350°/s
Tilt Range:		-5°~90° (Auto Flip )
Tilt Speed:		Configurable, from 0.1°/s to 160°/s Preset Speed: 200°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets for each patrol
Pattern:		4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:		Support
Park Action:		Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display:		ON/OFF

Infrared
IR irradiation distance:		50m
IR irradiation angle:		Adjustable by zoom

Alarm
Alarm Input:		2
Alarm Output:		2
Alarm Actions:		Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel

Input & Output
Audio Input:		1-ch audio input
Audio Output:		1-ch audio output

Network
Ethernet:		10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:		1920×1080
Main Stream:		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:		50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Video Compression:		Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Audio Compression:		G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
No. of Simultaneous Users:		Up to 20 users
Three-Stream:		Support
Mini SD Card:		Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures:		User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering

Client GUI
Client:		iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

General
Power Supply:		12VDC, PoE+
Power Consumption:		Max.: 18W (IR light 5W Max.)
Working Temperature/Humidity:		Outdoor: -30°C to 65°C (-22°F to 149°F) Humidity:≤ 90%
Protection Level:		IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions:		Φ 169 mm × 161 mm (Φ 6.65" × 6.34")
Weight (approx.):		Approx. 2.45kg (5.40lb)

•   Sản phẩm nhập khẩu chính hãng HIKVISION
•   Cam kết 1 đổi 1 nếu sản phẩm có vấn đề về chất lượng hoặc do lỗi của nhà sản xuất.
•   Bảo hành trong suốt 24 tháng.
