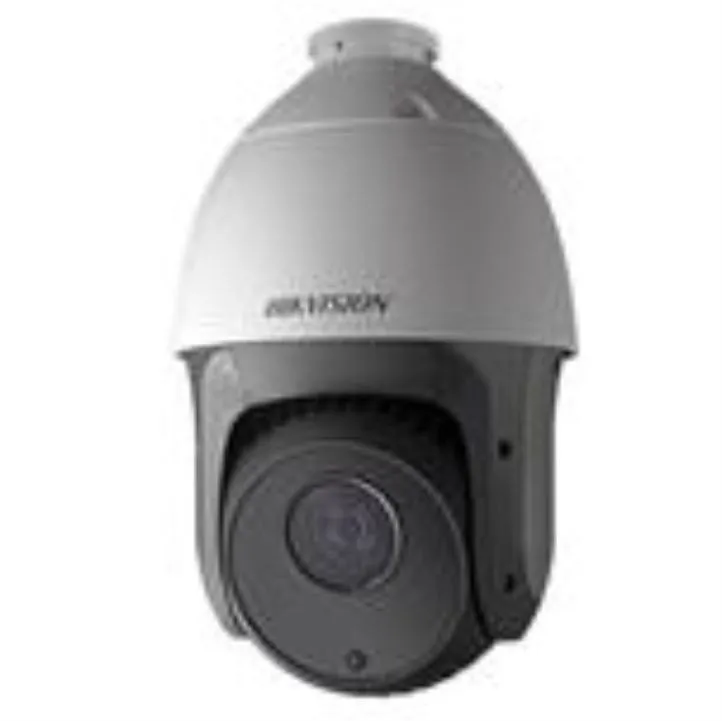

DS-2DE5220IW-AE

12.219.200đ ~~21.820.000đ~~ -43%

Nhà sản xuất:

HIKVISION

2MP 20X Network IR PTZ Camera
• 1/2.8" Progressive Scan CMOS
• 1920 x 1080
• 20X Optical Zoom
• DWDR
• 3D intelligent positioning function
• Support Hik cloud P2P
• Up to 150m IR distanceg
• Hi-PoE / 24VAC power supply
• Support BNC output

Tình trạng:

Còn hàng

Số lượng:

Mô tả
Bình luận

Camera IP Speed Dome hồng ngoại, 2MP (quay quét), chuẩn nén H264, có hỗ trợ H265+

Độ phân giải: 2.0 Megapixel (1920 x 1080p)
Cảm biến 1/2.8" Progressive Scan CMOS
Độ nhạy sáng cao: 0.02 Lux@F1.5, 0 Lux IR ON
Tầm xa hồng ngoại 150m
Ống kính Zoom quang 20X (4.7-94mm)
Zoom số 16X
Góc quay Pan: 360°, Tilt: -15° ~ 90°
Kết nối có dây RJ45
Cổng Video BNC 1
Truyền Audio, Tích hợp cổng cắm Audio in/out
Tích hợp cổng báo động Alarm in 2/out 1
Có khe cắm thẻ nhớ MicroSD, hỗ trợ thẻ tối đa 128GB
Hỗ trợ chuẩn kết nối ONVIF
Nguồn cấp 24VAC đi kèm hoặc Hi-PoE
Tiêu chuẩn ngoài trời IP66
Chống nhiễu kỹ thuật số 3D DNR
Chống ngược sáng Digital WDR
Chức năng bù ngược sáng (BLC)
Cắt lọc hồng ngoại ICR
Chống sương mù (Smart defog)
Che vùng riêng tư (Privacy Masking)
Tăng độ phân giải khu vực quan trọng (ROI encoding)
Tích hợp tính năng chống sét TVS 4000V
Chưa kèm chân đế
Hỗ trợ Online 20 user max
IVMS-4500 mobile software
Miễn phí 1 host chính hãng trọn đời sản phẩm
Điều khiển PAN/TIL/ZOOM qua chuột, phần mềm hoặc bằng bàn điều khiển network (DS-1100 KI). Qua đầu ghi dùng bàn điều khiển DS-1005KI
Lưu ý: không hỗ trợ cổng RS485
Chưa có chân đế nếu lấy chân đế DS 1602ZJ cộng thêm: 640.000 đồng

DS-2DE5220IW-AE

Camera
Image Sensor:		1/2.8" Progressive Scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		F1.5, AGC On: Color: 0.02 lux, B/W : 0.002 lux, 0 lux with IR
White Balance:		Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
Smart defog:		Support
WDR:		Support
Shutter Time:		1-1/10,000s
Digital Zoom:		16X
Privacy Masking:		8 privacy masks programmable
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		4.7-94.0mm, 20x
Zoom Speed:		Approx.3s(Optical Wide~Tele)
Angle of View:		58.3-3.2 degree (Wide~Tele)
Minimum Working Distance:		10~1,000mm(Wide~Tele)
Aperture Range:		F1.6~F3.5

Pan & Tilt
Pan Range:		360° continuous
Pan Speed:		Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range:		-15°-90° (Auto Flip )
Tilt Speed:		Tilt Manual Speed: 0.1°~200°/s, Tilt Preset Speed: 200°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets per patrol
Power loss recovery:		Support
Park Action:		Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:		ON/OFF
Freeze Frame:		Support

Infrared
IR irradiation distance:		150m
IR irradiation angle:		Adjustable by zoom

Alarm
Alarm Input:		2
Alarm Output:		1
Alarm Actions:		Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage

Input & Output
Monitor Output:		1.0Vp-p, 75 Ohm, BNC
Audio Input:		1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:		1 Audio output interface Line level, impedance: 600Ω

Network
Ethernet:		10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:		1920×1080
Main Stream:		50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream:		50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:		50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
Image Compression:		H.264 / MJPEG
ROI encoding:		Support 4 areas with adjustable levels
Audio Compression:		G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users:		Up to 20 users
Dual Stream:		Support
Mini SD Card:		Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:		Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:		User authentication (ID and PW), Host authentication (MAC address) IP address filtering
EZVIZ:		Support

Client GUI
Camera Control:		Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display:		Time: Week: Date, 6 formats on the Client
Client:		Support iVMS-4200
Web Browser:		IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General
Menu Language:		English
Power Supply:		24 VAC & Hi-PoE
Power Consumption:		Max.32W
Working Temperature/Humidity:		-30°C ~ 65°C (-22°F ~ 149°F)
Protection Level:		IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:		Various mounting modes optional
Dimensions:		Φ185(mm)×330(mm)
Weight (approx.):		4kg (8.81lbs)
Mount Option:		Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ

•   Sản phẩm nhập khẩu chính hãng HIKVISION
•   Cam kết 1 đổi 1 nếu sản phẩm có vấn đề về chất lượng hoặc do lỗi của nhà sản xuất.
•   Bảo hành trong suốt 24 tháng.
