DS-2DE4A220IW-DE

12.180.000đ ~~21.750.000đ~~ -43%

Nhà sản xuất:

HIKVISION

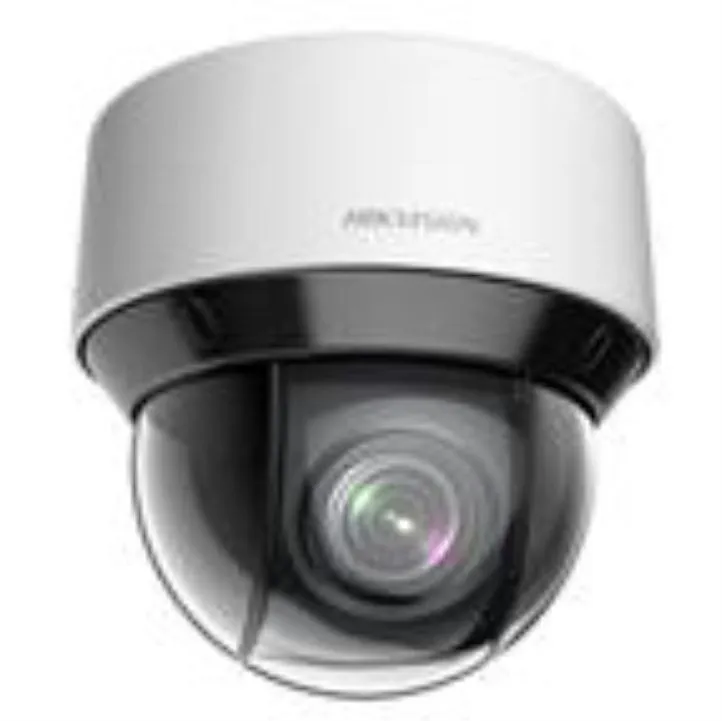

2MP Network IR mini PTZ Camera
• 1/2.8" Progressive Scan CMOS
• 1920 x 1080
• 20X Optical Zoom
• DWDR
• 3D intelligent positioning function
• Support Hik cloud P2P
• Up to 50m IR distanceg
• 12VDC & POE (802.3at, class4)

Tình trạng:

Còn hàng

Số lượng:

Mô tả
Bình luận

Camera IP speed dome hồng ngoại HD 2 MP, zoom xoay 4 chiều, ống kính 4.7-94mm, zoom quang học 20X.

Độ nhạy sáng: Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Chống ánh sáng ngược cực tốt
Công nghệ giảm nhòe kỹ thuật số 3D
Công nghệ nén hình H.264
Hoạt động tuyệt vời ở ánh sáng thấp
Tích hợp chuẩn ONVIF/PSIA
Hỗ trợ thẻ nhớ 128GB
1 audio input and 1 audio output
Hồng ngoại ban đêm 50m
Hổ trợ ghi nhớ 256 vị trí định sẵn
Tốc độ quay 0.10-3000/s
Nhận dạng chuyển động, gởi cảnh báo qua email
Có khả năng chống sét và sốc điện
Nhiệt độ môi trường hoạt động: -30° ~ 650°C
Nguồn 12VDC/PoE.

DS-2DE4A220IW-DE

Camera
Image Sensor:		1/2.8" Progressive Scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.05 Lux @ (F1.6, AGC ON) B/W: 0.01 Lux @ (F1.6, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
WDR:		Support
Shutter Time:		1/1 to 1/30,000s
Day& Night:		ICR
Digital Zoom:		16×
Privacy Masking:		8 privacy masks programmable
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		4.7 to 94mm
Zoom Speed:		Approx. 2.7s
Angle of View:		61.4° to 2.9° (wide-tele)
Minimum Working Distance:		10 to 1500mm (wide-tele)
Aperture Range:		F1.6 to F3.5

Pan & Tilt
Pan Range:		360°endless
Pan Speed:		Configurable, from 0.1°/s to 300°/s Preset Speed: 350°/s
Tilt Range:		-5°~90° (Auto Flip )
Tilt Speed:		Configurable, from 0.1°/s to 160°/s Preset Speed: 200°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets for each patrol
Pattern:		4 pattern scans, record time over 10 minutes for each scan
Power loss recovery:		Support
Park Action:		Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:		ON/OFF
Freeze Frame:		Support

Infrared
IR irradiation angle:		Adjustable by zoom

Alarm
Alarm Input:		2
Alarm Output:		2
Alarm Actions:		Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel

Input & Output
Audio Input:		Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%
Audio Output:		1 Audio output interface Line level, impedance: 600Ω

Network
Ethernet:		10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:		1920×1080
Main Stream:		50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream:		50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:		50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Image Compression:		H.265/H.264/MJPEG
Audio Compression:		G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:		Up to 20 users
Three-Stream:		Support
Mini SD Card:		Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:		Up to 32 users 3 levels: Administrator, Operator and User
Security Measures:		User authentication (ID and PW), Host authentication (MAC address) IP address filtering

Client GUI
Client:		Support iVMS-4200
Web Browser:		IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General
Power Supply:		12 VDC &POE (802.3at,class4)
Power Consumption:		Max.: 18W (IR light 5W Max.)
Working Temperature/Humidity:		Outdoor: -30°C to 65°C (-22°F to 149°F) Humidity:≤ 90%
Protection Level:		IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:		Variable installation methods optional, including ceiling mounting (default), in-ceiling mounting, junction box installation and wall mounting
Dimensions:		Φ169.39mm ×161mm (Φ6.67"×6.34")
Weight (approx.):		Approx. 2.45kg (5.40lb)

•   Sản phẩm nhập khẩu chính hãng HIKVISION
•   Cam kết 1 đổi 1 nếu sản phẩm có vấn đề về chất lượng hoặc do lỗi của nhà sản xuất.
•   Bảo hành trong suốt 24 tháng.
