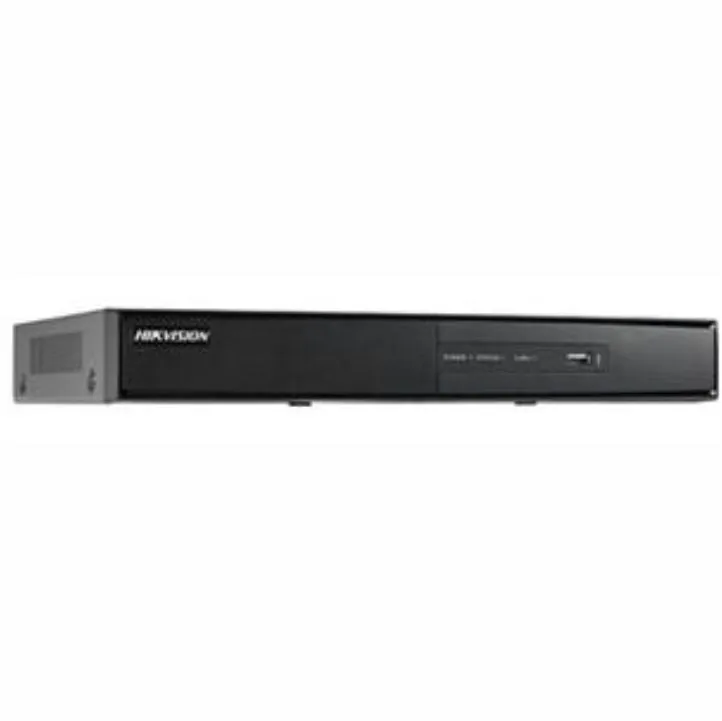

DS-7208HGHI-F1/N

DS-7208HGHI-F1/N

1.271.200đ 2.270.000đ -43%
HIKVISION

Turbo HD 3.0 DVR
• H.264 ,H.264+& Dual-stream video compression
• Support  HD-TVI, AHD and analog cameras with adaptive access
• Up to 3 MP resolution for recording of the first channel of DS-7204HQHI-F1/N, the first 2 channels of DS-7208HQHI-F1/N, and the first 4 channels of DS-7216HQHI-F1/N
• Support 1080P lite mode enabled to realize the real-time 1080P lite and 720P lite resolution
• Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution for DS-7204/7208HQHI-F1/N and 4K (3840 × 2160) resolution for HDMI output of DS-7216HQHI-F1/N
• Long transmission distance over coax cable
• Up  to 4/8-ch synchronous playback at 1080p resolution
• Playback at up to 256X speed.

Còn hàng
1

Đầu ghi hình 8 kênh Turbo HD 3.0 DVR

  • Hỗ trợ camera HD-TVI 720P, Analog + thêm 1 Camera IP ONVIF 1.3MP
  • Lưu ý phải cắm camera cùng loại thành từng cặp, ví dụ 1-2;3-4;5-6...
  • Hỗ trợ H.264+ tiết kiệm 50% dung lượng lưu trữ
  • Tín hiệu truyền khoảng cách xa hơn: 1200m@720P, 800m@1080P với cáp đồng RG6; 500m@720P, 400m@1080P với cáp UTP
  • 4/8/16 ngõ vào video, 1 cổng audio input, 1 cổng SATA hỗ trợ ổ cứng tối đa 6TB
  • Độ phân giải ghi hình: 1280×720P: 25(P)/30(N) fps/ch với đầu ghi 72xxHGHI-F1, 12(P)/30(N) fps/ch với đầu ghi 72xxHGHI-F1/N
  • Kích thước khung: 260 × 222 × 45mm,
  • Cổng ra HDMI và VGA với độ phân giải lên tới: 1920x1280P
  • Nguồn 12V
  • Tối đa 128 người truy cập cùng lúc
  • Tên miền miễn phí trọn đời của Hikvision.


DS-7208HQHI-F1/N

Video/Audio Input

Audio Input:



1-ch

Video Compression:



H.264,H.264+

Analog and HD-TVI video input:



8-ch,BNC interface (1.0Vp-p, 75 Ω)connection

Analog and HD-TVI video input:



8-ch,BNC interface (1.0Vp-p, 75 Ω)connection

Supported camera types:



Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
Note: The 3 MP signal input is only available for the first channel of DS-7204HQHI-F1/N, the first 2 channels of DS-7208HQHI-F1/N, and the first 4 channels of DS-7216HQHI-F1/N.
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input

Supported camera types:



Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
Note: The 3 MP signal input is only available for the first channel of DS-7204HQHI-F1/N, the first 2 channels of DS-7208HQHI-F1/N, and the first 4 channels of DS-7216HQHI-F1/N.
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input

IP Video Input:



2-ch Up to 2MP resolution

Video Input Interface:



BNC (1.0 Vp-p, 75Ω)

Audio Compression:



G.711u

Audio Input Interface:



RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio:



1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output

CVBS Output:



1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480

CVBS Output:



1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480

HDMI/VGA Output:



1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording resolution:



When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF

Frame Rate:



Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Frame Rate:



Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate:



32 Kbps-6 Mbps

Stream Type:



Video/Video&Audio

Audio Output:



1-ch RCA(Linear, 1kΩ)

Audio Bit Rate:



64kbps

Dual Stream:



Support

Playback Resolution:



3 MP/1080p/720p/VGA/WD1/4CIF/CIF

Synchronous Playback:



8-ch

Network management

Remote connections:



128

Remote connections:



128

Network protocols:



TCP/IP, PPPoE, DHCP,Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF

Network protocols:



TCP/IP, PPPoE, DHCP,Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF

Hard Disk Driver

Interface Type:



1 SATA Interface

Capacity:



Up to 6 TB capacity for each disk

External Interface

Network Interface:



1; 10M / 100M self-adaptive Ethernet interface

USB Interface:



2 USB 2.0 Interfaces

Serial Interface:



1; standard RS-485 serial interface, half-duplex

General

Power Supply:



12V DC

Consumption:



≤ 20W(without hard disks)

Working Temperature:



-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)

Working Humidity:



10% ~ 90%

Chassis:



Standalone 1U chassis

Dimensions:



315 × 242 × 45 mm
(12.4 × 9.5 × 1.8 inch)

Weight:



≤2 kg(4.4lb)



•    Sản phẩm nhập khẩu chính hãng HIKVISION
•    Cam kết 1 đổi 1 nếu sản phẩm có vấn đề về chất lượng hoặc do lỗi của nhà sản xuất.
•    Bảo hành trong suốt 24 tháng.
