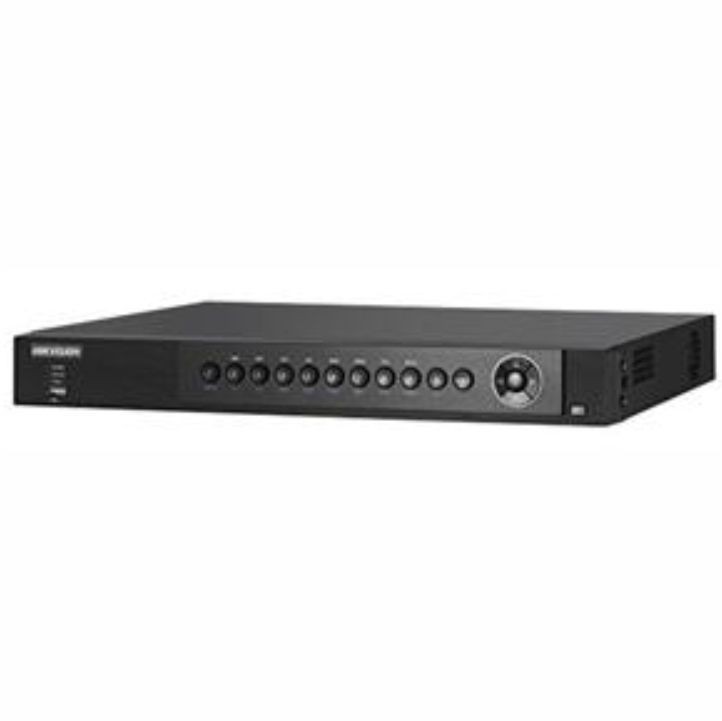

DS-7204HUHI-F1/S
|
Video/Audio Input
|
|
Audio Input:
|
|
4-ch
|
|
Video Compression:
|
|
H.264,H.264+
|
|
Analog and HD-TVI video input:
|
|
4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
|
|
Supported camera types:
|
|
Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input
|
|
Video Input Interface:
|
|
BNC (1.0 Vp-p, 75Ω)
|
|
Audio Compression:
|
|
G.711u
|
|
Audio Input Interface:
|
|
4-ch, RCA (2.0 Vp-p, 1 KΩ)
|
|
Two-way Audio:
|
|
1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
|
|
Video/Audio Output
|
|
CVBS Output:
|
|
1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
|
|
HDMI/VGA Output:
|
|
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
|
|
Recording resolution:
|
|
Mainstream:5MP/4MP/3Mp/1080p/720p/WD1/4CIF/VGA/CIF
Sub-stream:WD1/4CIF/CIF/QVGA/QCIF
|
|
Frame Rate:
|
|
Main stream:
5MP@10fps/4MP@15fps/3MP@15fps/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)
|
|
Video Bit Rate:
|
|
32 Kbps-10 Mbps
|
|
Stream Type:
|
|
Video/Video&Audio
|
|
Two-way Audio:
|
|
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
|
|
Audio Output:
|
|
1-ch RCA(Linear, 1kΩ)
|
|
Audio Bit Rate:
|
|
64kbps
|
|
Dual Stream:
|
|
Support
|
|
Playback Resolution:
|
|
5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
|
|
Synchronous Playback:
|
|
4-ch
|
|
Network management
|
|
Remote connections:
|
|
128
|
|
Network protocols:
|
|
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
|
|
Hard Disk Driver
|
|
Interface Type:
|
|
1 SATA Interface
|
|
Capacity:
|
|
Up to 6 TB capacity for each disk
|
|
External Interface
|
|
Network Interface:
|
|
1; 10M / 100M self-adaptive Ethernet interface
|
|
USB Interface:
|
|
2 USB 2.0 Interfaces
|
|
Serial Interface:
|
|
1; standard RS-485 serial interface, half-duplex
|
|
Alarm Input:
|
|
4-ch
|
|
Alarm Output:
|
|
1-ch
|
|
General
|
|
Power Supply:
|
|
12V DC
|
|
Consumption:
|
|
≤ 15W(without hard disks)
|
|
Working Temperature:
|
|
-10 oC ~+55 oC (14 oF ~ 131 oF)
|
|
Working Humidity:
|
|
10% ~ 90%
|
|
Chassis:
|
|
Standard 1U chassis
|
|
Dimensions:
|
|
315 × 242 × 45 mm
(12.4 × 9.5 × 1.8 inch)
|
|
Weight:
|
|
≤1.5 kg(3.3lb)
|
|
