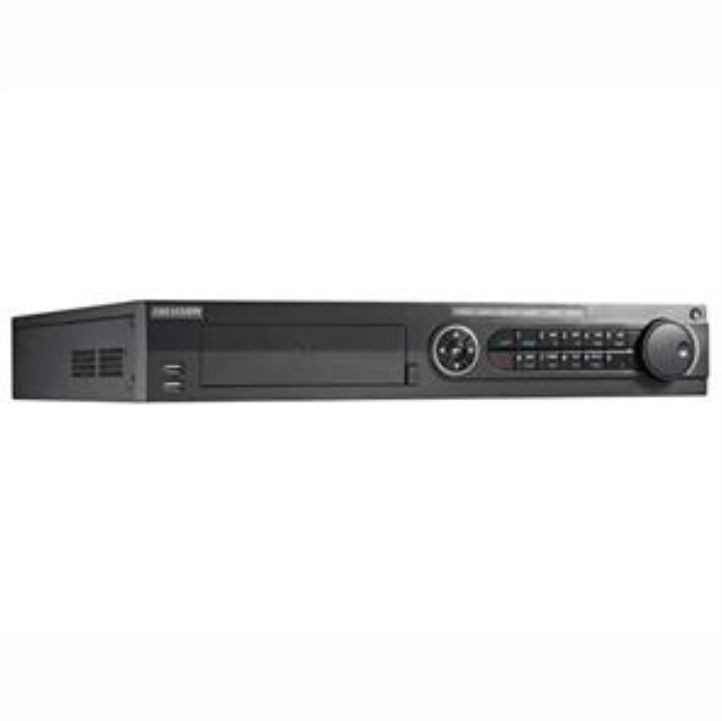

DS-7316HUHI-F4/N

DS-7316HUHI-F4/N

15.366.400đ 27.440.000đ -43%
HIKVISION

Turbo HD 3.0 DVR
• H.264 ,H.264+& Dual-stream video compression
• Support  HD-TVI, IPC,AHD and analog cameras with adaptive access
• Support Cloud storage(One Drive, Google Drive or Drop Box)
• Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
• Long transmission distance over coax cable
• Up to 16-ch synchronous playback at 3MP resolution
• playback at up to 256X speed.
• Support POS functions.
• Raid 1/0/5/10
• Dual network ports

Còn hàng
1

Đầu ghi 16 kênh tương thích TVI-HD/AHD/Analog/IPC

  • 4 cổng vào audio, 4 cổng SATA
  • Độ phân giải ghi hình 3MP/15fps, 1920x1080P:25(P)/30(N) fps
  • Cho phép gán thêm 18 camera IP
  • Cổng xuất hình 4K UHD
  • 2 cổng mạng Ethernet RJ-45 Gigabit
  • 2 cổng xuất hình HDMI
  • Cổng báo động I/O:16/4
  • Kích thước 1,5U 19"


DS-7316HUHI-F4/N

Video/Audio Input

Audio Input:



4-ch

Video Compression:



H.264,H.264+

Analog and HD-TVI video input:



16-ch,BNC interface (1.0Vp-p, 75 Ω)connection

Supported camera types:



Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input

Video Input Interface:



BNC (1.0 Vp-p, 75Ω)

Audio Compression:



G.711u

Audio Input Interface:



4-ch, RCA (2.0 Vp-p, 1 KΩ)

Two-way Audio:



1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output

HDMI 1/ VGA and HDMI2:



HDMI1 & VGA: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
HDMI2: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz,
1280 × 720/60Hz, 1024 × 768/60 Hz

CVBS Output:



1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480

Recording resolution:



3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate:



Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)

Video Bit Rate:



32 Kbps-10 Mbps

Stream Type:



Video/Video&Audio

Two-way Audio:



1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Audio Output:



2-ch, RCA (2.0 Vp-p, 1 kΩ)

Playback Resolution:



3 MP/1080p/720p/VGA/WD1/4CIF/CIF

Synchronous Playback:



16-ch

Network management

Remote connections:



128

Network protocols:



TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF

Hard Disk Driver

Interface Type:



4 SATA Interfaces

Capacity:



Up to 6 TB capacity for each disk

External Interface

Network Interface:



2; 10M / 100M / 1000M self-adaptive Ethernet interfaces

USB Interface:



2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel

Serial Interface:



1 RJ45 RS-232 interface；1 RS-485 interface; 2 RS-485 keyboard interface

Alarm Input:



16-ch

Alarm Output:



4-ch

General

Power Supply:



100 to 240 VAC

Consumption:



≤ 65W(without hard disks)

Working Temperature:



-10 oC ~+55 oC (14 oF ~ 131 oF)

Working Humidity:



10% ~ 90%

Dimensions:



445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)

Weight:



≤ 5 kg (11.0lb)



•    Sản phẩm nhập khẩu chính hãng HIKVISION
•    Cam kết 1 đổi 1 nếu sản phẩm có vấn đề về chất lượng hoặc do lỗi của nhà sản xuất.
•    Bảo hành trong suốt 24 tháng.
