DS-1100KI

17.180.800đ ~~30.680.000đ~~ -43%

Nhà sản xuất:

HIKVISION

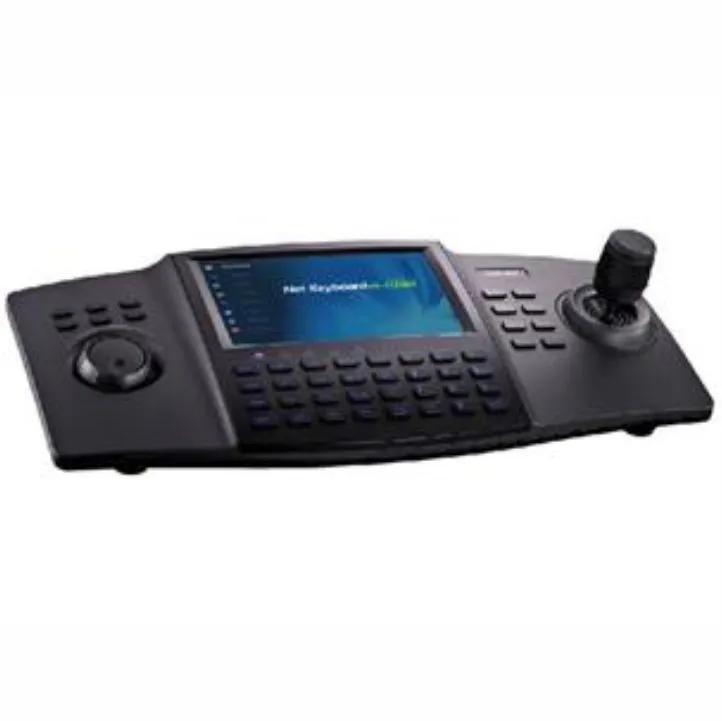

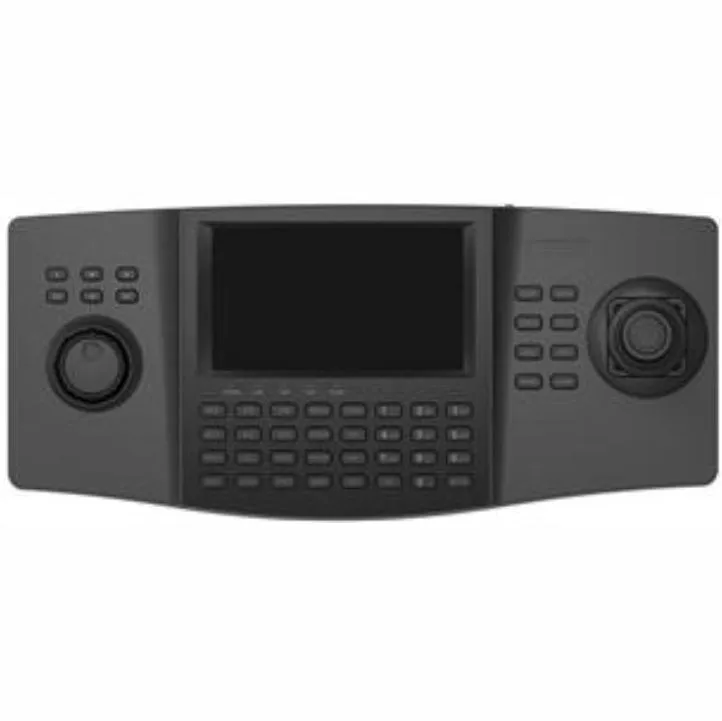

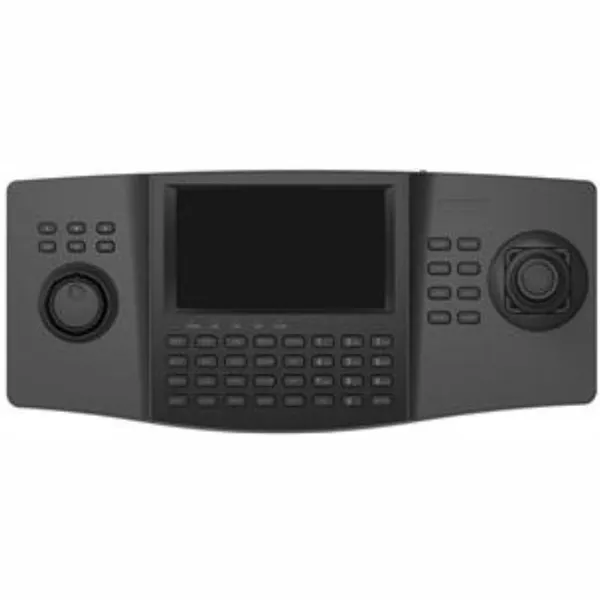

Network Keyboard

7’’ TFT touch screen at 800×480 resolution;
4-axis joystick;
Live view and playback of video on screen at up to 1080P resolution;
Compatible with NVR/DVR/DVS, matrix, network camera/dome, video wall controller, etc.
Macro command operation;
Display of decoded video on monitor or video wall;
Shortcut keys for dome control, setting and calling of preset, patrol and pattern;
Shortcut keys for playback operation;
Shortcut keys for input group and output group;
Shortcut keys for wiper and light control operation;
1-channel video decoding for local live view;
Video capture and recording to local U-flash disk;
Support 3 operators, and each user is allowed to operate 1280 devices;
Support configuration by WEB server;
Support configuration by the Keyboard Configuration Tool;
Configuration and control of the MVC system;
Support control of the analog matrix with the protocol of ZT-1.0, ZT-2.0, EXTRON or CREATOR;
Control of up to 255 analog domes by RS-485 connection;
Accessible by the platform software.

Tình trạng:

Còn hàng

Số lượng:

Mô tả
Bình luận

Bàn điều khiển Camera IP Speed Dome (Network Keyboard)

Tích hợp màn hình cảm ứng 7" với độ phân giải 800X480, cho phép xem trực tiếp hoặc xem lại 1 camera trên màn hình
Cho phép ghi lại hình ảnh và âm thanh qua cổng USB
Cần điều khiển 3-axis joystick
Cổng giao tiếp:1 cổng RJ45, 1 cổng RS485, 1 cổng RS232, 1 cổng USB (để chiết xuất dữ liệu), 1 cổng Audio IN, 1 cổng Audio OUT.
Hỗ trợ 15 người dùng, mỗi người được phép điều khiển 256 thiết bị
Tương thích với IP camera, DVR, DVS, PC-DVR...
Nguồn 12VDC

1100KI

Control Mod
Control Mod:		IP-based

Control
Joystick:		4-axis joystick

Audio Input / Output
Line In:		1-ch, 3.5 mm connector (2.0 Vp-p, 1 kΩ)
Audio Out:		1-ch, 3.5 mm connector (Linear, 560 Ω)

System
TFT LCD Screen:		7” TFT LCD monitor with touch panel Resolution: 800 × 480

External Interfaces
Network Interface:		1 10M/100M/1000M Ethernet interface
USB Interface:		1, USB2.0 (for data storage and device upgrade)
RS-232 Interface:		1 RS-232 interface
RS-485 Interface:		1 RS-485 interface

General
Power Supply:		12 VDC
Consumption:		≤ 15W
Working temperature:		-10°C to +55°C (14 oF to 131o F)
Working humidity:		10% to 90%
Dimensions (W × D × H):		435 × 193 × 110 mm (17.1" × 7.6" × 4.3")
Weight:		2 Kg (4.4 lb)

•   Sản phẩm nhập khẩu chính hãng HIKVISION
•   Cam kết 1 đổi 1 nếu sản phẩm có vấn đề về chất lượng hoặc do lỗi của nhà sản xuất.
•   Bảo hành trong suốt 24 tháng.
