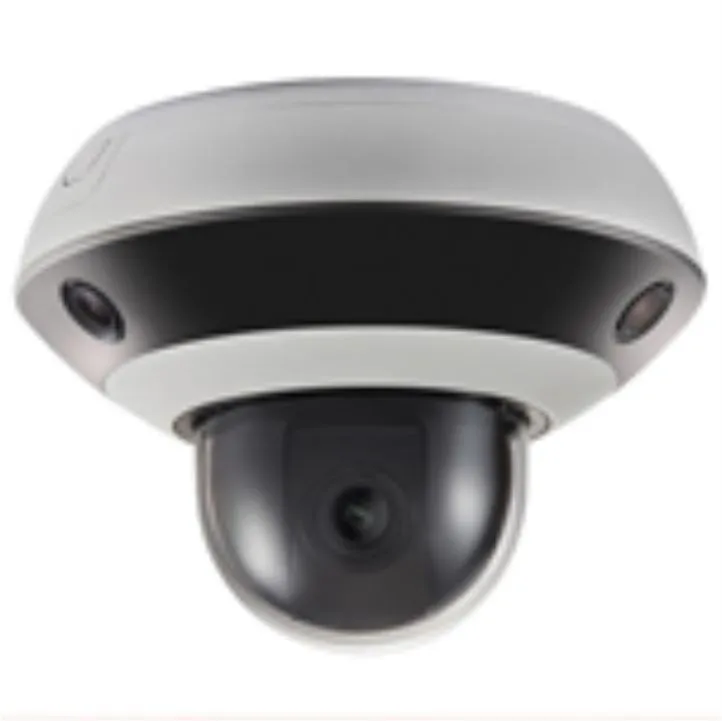

DS-2PT3326IZ-DE3 (2.8-12mm)
|
Panoramic Camera
|
|
Image Sensor:
|
|
1/2.8" progressive scan CMOS
|
|
Max. Image Resolution:
|
|
1920 × 1080
|
|
Min. Illumination:
|
|
Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR
|
|
Lens:
|
|
f2mm/F2.0
|
|
Angle of View:
|
|
Horizontal field of view: 128.5° × 3
Vertical field of view: 75.7°
Diagonal field of view: 144°
|
|
Main Stream:
|
|
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
|
|
Sub Stream:
|
|
50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)
|
|
Image Compression:
|
|
H.265/H.264
|
|
White Balance:
|
|
Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
|
|
Shutter Time:
|
|
50 Hz: 1/1 s to 1/30,000 s
60 Hz: 1/1 s to 1/30,000 s
|
|
Day& Night:
|
|
ICR
|
|
Tracking PTZ Camera
|
|
Image Sensor:
|
|
1/2.8" progressive scan CMOS
|
|
Max. Image Resolution:
|
|
1920 × 1080
|
|
Minimum Illumination:
|
|
Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.01 Lux @(F2.0, AGC ON)
0 Lux with IR
|
|
Angle of View:
|
|
Horizontal field of view: 120° to 56.6° (wide - tele)
Vertical field of view: 61.8° to 31.7° (wide - tele)
Diagonal field of view: 149° to 65° (wide - tele)
|
|
Zoom Speed:
|
|
Approx.5.4 s (optical, wide - tele)
|
|
Focal Length:
|
|
2.8 mm to 12 mm, 4× optical zoom
|
|
White Balance:
|
|
Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
|
|
AGC:
|
|
Support
|
|
Shutter Time:
|
|
50 Hz: 1/1 s to 1/30,000 s
60 Hz: 1/1 s to 1/30,000 s
|
|
Day & Night:
|
|
IR Cut Filter
|
|
Optical Defog:
|
|
Support
|
|
ROI encoding:
|
|
Main stream and sub-stream respectively supports eight fixed areas.
|
|
Main Stream:
|
|
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
|
Sub Stream:
|
|
50Hz:25fps (704×576, 352×288, 176×144)
60Hz:30fps (704×480, 352×240, 176×120)
|
|
Image Compression:
|
|
H.265/H.264
|
|
WDR:
|
|
Digital WDR
|
|
Privacy Masking:
|
|
8 programmable privacy masks
|
|
Pan and Tilt
|
|
Pan Range:
|
|
0° to 350°
|
|
Pan Speed:
|
|
0.1°/s to 30°/s (configurable), preset speed: 30°/s
|
|
Tilt Range:
|
|
0° to 90°
|
|
Tilt Speed:
|
|
0.1°/s to 30°/s (configurable), preset speed: 30°/s
|
|
Number of Preset:
|
|
300
|
|
Scheduled Task:
|
|
Preset/Dome Reboot/Dome Adjust
|
|
Power-off memory:
|
|
Support
|
|
System Function
|
|
IR:
|
|
Up to 10 m IR distance
|
|
PTZ Linkage:
|
|
Support
|
|
Smart Detection:
|
|
Motion Detection, Video Tampering Detection, Exception
|
|
Input & Output
|
|
Audio Input:
|
|
1-ch audio input
|
|
Audio Output:
|
|
1-ch audio output
|
|
Network
|
|
Audio compression:
|
|
G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM
|
|
Protocol:
|
|
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
|
|
Application programming:
|
|
Open-ended API, support Onvif, ISAPI, CGI
|
|
System Integration
|
|
Menu:
|
|
English
|
|
User/Host Level:
|
|
Up to 32 users,3 Levels: Administrator, Operator and User
|
|
Security Measures:
|
|
User authentication (ID and PW); Host authentication (MAC address); IP address filtering
|
|
Web Browser:
|
|
IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
|
|
Simultaneous Live View:
|
|
Up to 8 × 2 channels
|
|
Ethernet:
|
|
1 RJ45 10 M/100 M Ethernet
|
|
Onboard Storage:
|
|
Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording
|
|
General
|
|
Power supply:
|
|
12 VDC & PoE+ (802.3 at, class 4)
|
|
Consumption (without hard disk):
|
|
Max.24 W (Max. 6 W for IR)
|
|
Working temperature:
|
|
-10°C to 50°C (14°F to 122°F)
|
|
Working humidity:
|
|
Humidity 90% or less
|
|
Material:
|
|
PC + ABS & Aluminum alloy
|
|
Protection Level:
|
|
TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
|
|
Dimensions (W×D×H):
|
|
Φ 183 mm × 133.2 mm (Φ 7.20" × 5.24")
|
|
Weight:
|
|
Approx. 0.9 kg (1.98 lb)
|
|
