DS-2CD2523G0-IWS

DS-2CD2523G0-IWS

2.940.000đ 5.250.000đ -43%
HIKVISION

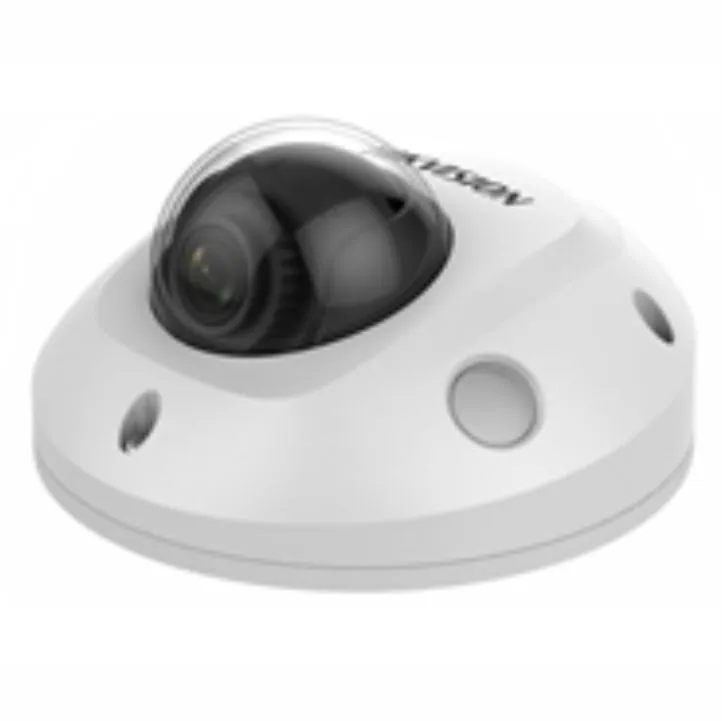

2 MP IR Fixed Mini Dome Network Camera
 • 1920 × 1080@30fps
 • IR: up to 10 m
 • H.265, H.265+
 • 120dB WDR
 • Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
 • PoE
 • EXIR
 • Wi-Fi (Optional)

Còn hàng
1

Camera IP bán cầu hồng ngoại 2MP chuẩn nén H.265+

  • Cảm biến 1/2.8" Progressive Scan CMOS
  • Chống ngược sáng WDR 120dB
  • Chuẩn nén H.265+/H.265/H.264+/H.264/MJPEG
  • Độ nhạy sáng Màu: 0.01 lux @(F1.2, AGC ON), 0 lux với hồng ngoại
  • Ông kinh 2.8 (đặt hàng 4mm, 6mm)
  • 25fps/30fps(1920×1080)
  • 3 tính năng VCA
  • 3 luồng dữ liệu
  • 3D DNR; ICR
  • EXIR 2.0, hồng ngoại 10m
  • DC12V & PoE
  • Tích hợp thẻ nhớ SD/SDHC/SDXC
  • Hỗ trợ dịch vụ Hik-Connect
  • -S: Kết nối Audio/Alarm IO
  • -W: Tích hợp WiFi
  • - Tặng Adaptor 12V chính hãng


DS-2CD2523G0-I(W)(S)

Camera

Image Sensor:



1/2.7” Progressive Scan CMOS

Signal System:



PAL/NTSC

Min. Illumination:



Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Shutter time:



1/3 s to 1/100,000 s

Slow shutter:



Support

Lens:



2.8 mm: Horizontal field of view: 114°, Vertical field of view: 62°, Diagonal field of view: 135°
4 mm: Horizontal field of view: 86°, Vertical field of view: 46°, Diagonal field of view: 102°
6 mm: Horizontal field of view: 54°, Vertical field of view: 30°, Diagonal field of view: 62°

Lens Mount:



M12

Adjustment Range:



Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°

Day& Night:



IR Cut Filter

Wide Dynamic Range:



120 dB

Digital noise reduction:



3D DNR

Focus:



Fixed

Compression Standard

Video Compression:



H.265+/H.265/H.264+/H.264/MJPEG

H.264 code profile:



Main Profile/High Profile

Video bit rate:



256Kbps~16Mbps

Audio Compression:



G.711/G.722.1/G.726/MP2L2/PCM

Audio bit rate:



64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Triple Streams:



Yes


Max. Image Resolution:



1920 x 1080

Frame Rate:



50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream:



50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:



50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

Image Enhancement:



BLC/3D DNR/BLC

Image Settings:



Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

ROI:



Support 1 fixed region for main stream and sub-stream separately

Day/Night Switch:



Auto/Schedule/Day/Night/Triggered by Alarm In (-S)

Network

Network Storage:



microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger:



Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols:



TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

General Function:



One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering

System Compatibility:



ONVIF (Profile S, Profile G), ISAPI

Interface

Audio:



with -S model：2 Inputs: Line in (3.5 mm) or Mic in (built-in microphone), 1 Output: Line out (3.5 mm), mono sound

Communication Interface:



1 RJ45 10M / 100M Ethernet interface

Alarm:



with -S model：1 Input: Alarm in (3.5mm), 1 Output: Alarm out (3.5mm)

On-board storage:



Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button:



Yes

Audio

Environment Noise Filtering:



Support

Audio Sampling Rate:



8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set

Behavior Analysis:



Line crossing detection, intrusion detection

Line Crossing Detection:



Cross a pre-defined virtual line

Intrusion Detection:



Enter and loiter in a pre-defined virtual region

Recognition:



Face Detection

Wi-Fi Specification (-W)

Wireless Standards:



IEEE802.11b, 802.11g, 802.11n

Frequency Range:



2.412 GHz to 2.4835 GHz

Channel Bandwidth:



20/40MHz Support

Security:



WPA, WPA2

Transmission Rate:



11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps

Wireless Range:



50m(depend on environment)

Protocols:



802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK

General

Operating Conditions:



-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)

Power Supply:



12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption:



12 VDC, 0.7 A, max. 8.5W, Φ 5.5mm coaxial plug power
PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W

Impact Protection:



IK08 Protection Level

Weather Proof:



IP66

IR Range:



Up to 10m

Dimensions:



Φ110 mm × 56.4 mm (Φ4.3" × 2.2")

Weight:



Camera: Approx. 400 g (0.9 lb.)



•    Sản phẩm nhập khẩu chính hãng HIKVISION
•    Cam kết 1 đổi 1 nếu sản phẩm có vấn đề về chất lượng hoặc do lỗi của nhà sản xuất.
•    Bảo hành trong suốt 24 tháng.
