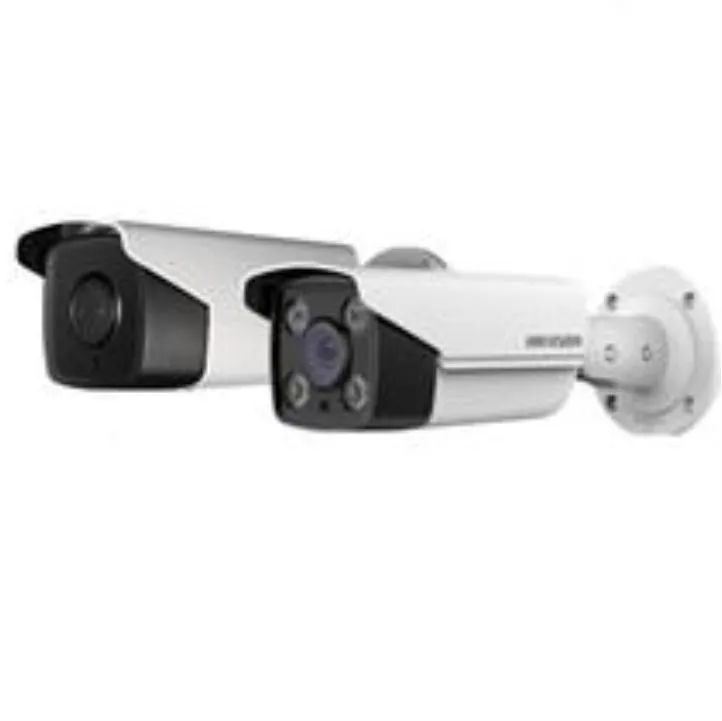

DS-2CD4A26FWD-IZHS)(LZS)/P
|
Camera
|
|
Image Sensor:
|
|
1/1.8" Progressive Scan CMOS
|
|
Signal System:
|
|
PAL/NTSC
|
|
Min. Illumination:
|
|
Color: 0.002 Lux @ (F1.2, AGC ON), 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR
|
|
Shutter time:
|
|
1 s to 1/100,000 s
|
|
Slow shutter:
|
|
Support
|
|
Lens:
|
|
2.8-12mm, 8-32mm optional
|
|
Auto Iris:
|
|
DC drive
|
|
Adjustment Range:
|
|
2.8-12 mm, F1.4, horizontal field of view: 92° to 32°
8-32 mm, F1.6, horizontal field of view: 42° to 13.5°
|
|
Day& Night:
|
|
IR cut filter with auto switch
|
|
Wide Dynamic Range:
|
|
120 dB
|
|
Digital noise reduction:
|
|
3D DNR
|
|
Focus:
|
|
Motorized VF lens(-Z model)
|
|
Compression Standard
|
|
Video Compression:
|
|
H.264+/H.264/MPEG4/MJPEG
|
|
H.264 code profile:
|
|
Baseline Profile/Main Profile/High Profile
|
|
Video bit rate:
|
|
32Kbps~16Mbps
|
|
Audio Compression:
|
|
-S: G.711/G.722.1/G.726/MP2L2
|
|
Audio bit rate:
|
|
64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32-160Kbps (MP2L2)
|
|
Dual Stream:
|
|
Yes
|
|
Triple Streams:
|
|
Yes
|
|
|
|
Max. Image Resolution:
|
|
1920 x 1080
|
|
Frame Rate:
|
|
Main Stream:
50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
|
Sub Stream:
|
|
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
|
|
Third Stream:
|
|
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
|
|
Image Enhancement:
|
|
BLC /3D DNR/Defog/EIS
|
|
Image Settings:
|
|
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
|
|
Target Cropping:
|
|
Support
|
|
Automatic white balance:
|
|
Support
|
|
BLC:
|
|
Support
|
|
EIS:
|
|
Support
|
|
3D DNR:
|
|
Support
|
|
ROI:
|
|
Support
|
|
Picture Overlay:
|
|
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
|
|
Network
|
|
Network Storage:
|
|
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
|
|
Alarm Trigger:
|
|
Road traffic, motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
|
|
Protocols:
|
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
|
|
General Function:
|
|
One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
|
|
System Compatibility:
|
|
ONVIF (Profile S, Profile G),ISAPI
|
|
Interface
|
|
Communication Interface:
|
|
1 RJ45 10M/100M Ethernet port
|
|
Audio:
|
|
1-ch audio in, Mic in/Line in;
1-ch audio out
|
|
Audio Input:
|
|
1-ch 3.5 mm audio interface, MIC IN/LINE IN
|
|
Audio Output:
|
|
1-ch 3.5mm audio interface
|
|
Alarm:
|
|
With –S model: 1 input, 1 output
|
|
Alarm Input:
|
|
1
|
|
Alarm Output:
|
|
1
|
|
Video Output:
|
|
1Vp-p Composite Output (75 Ω, BNC)
|
|
On-board storage:
|
|
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
|
|
Reset Button:
|
|
Yes
|
|
Audio
|
|
Environment Noise Filtering:
|
|
Support
|
|
Audio I/O:
|
|
Support dual audio track, stereo (-S)
|
|
Audio Sampling Rate:
|
|
16kHz / 32kHz / 44.1kHz / 48kHz
|
|
General
|
|
IR Range:
|
|
-IZ/P, -IZS/P, -IZHS/P: 850 nm IR wavelength, up to 50 meters for 2.8 to 12 mm lens, up to 100 m for 8 to 32 mm lens
|
|
Operation Condition:
|
|
-IZS/P, -IZ/P, -LZS/P: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
-IZHS/P: -40 °C to +60 °C (-40 °F to +140°F), Humidity 95% or less (non-condensing)
|
|
Power Supply:
|
|
12 VDC ± 10%, terminal block, PoE (802.3at, class 4)
|
|
Weather Proof:
|
|
IP67
|
|
IR Range:
|
|
50m(2.8~12mm)/100m(8~32mm)
|
|
Dimensions:
|
|
Camera: 100 × 103.9 × 311.8 mm (3.94" × 4.09" × 12.28")
Package: 386 × 156 × 155 mm (15.20" × 6.14" × 6.10")
|
|
Weight:
|
|
2075 g (4.57 lb.)
|
|
