DS-2AE4215T-D3 DS-2AE4215T-D3

DS-2AE4215T-D3

5.812.800đ 10.380.000đ -43%
HIKVISION

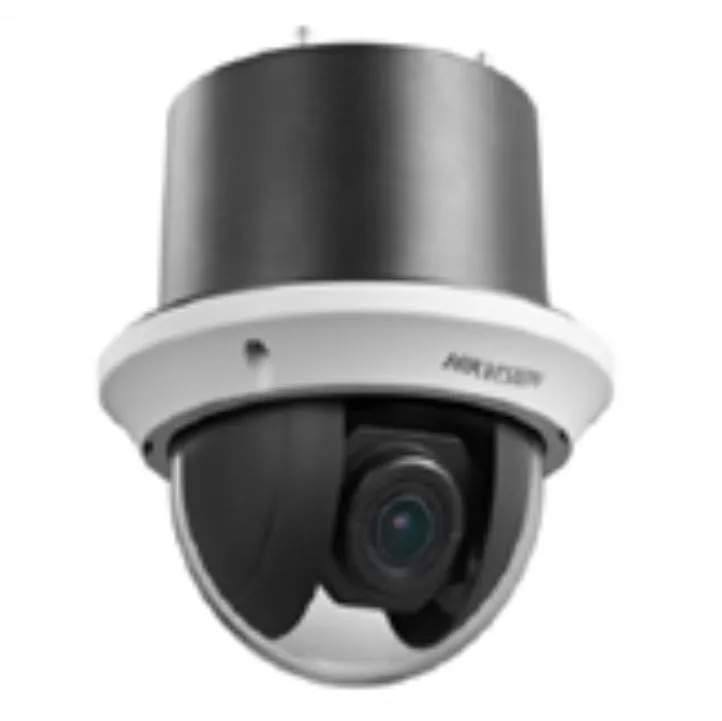

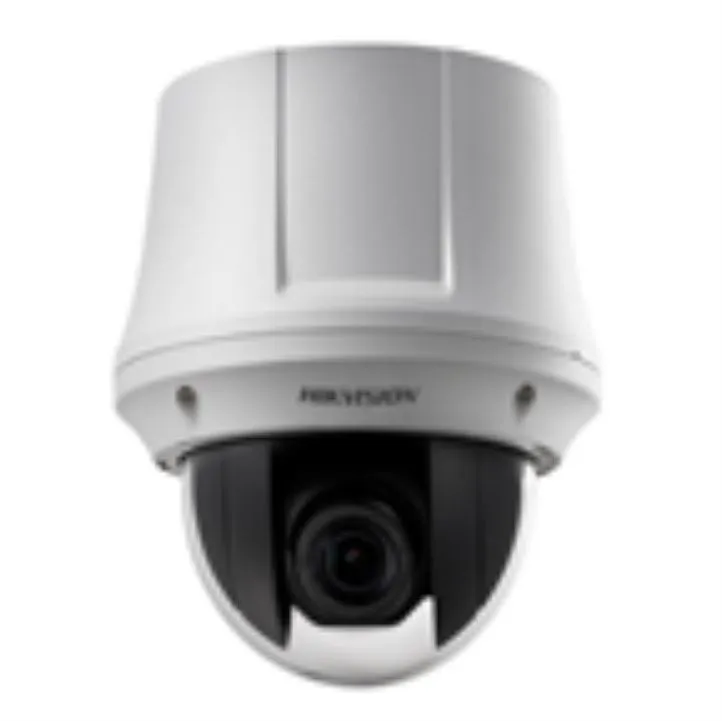

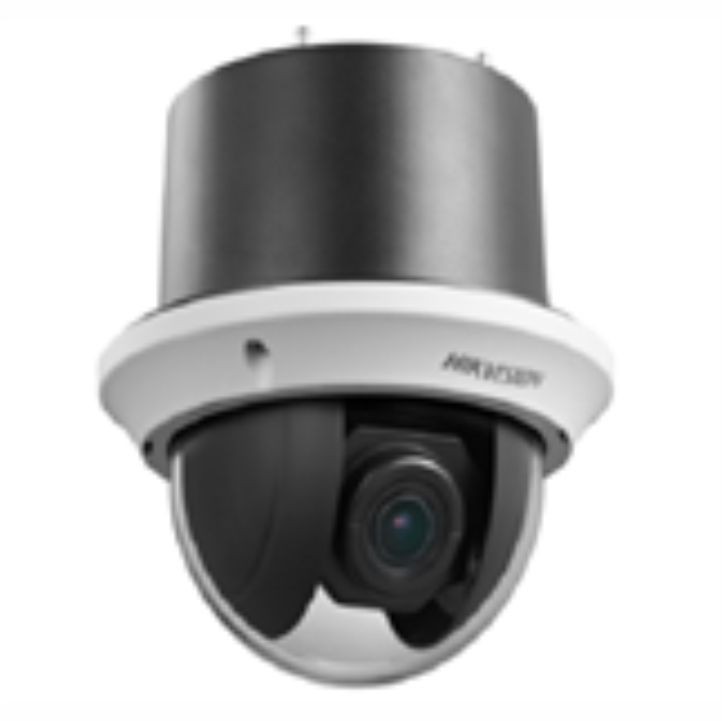

2 MP Turbo 4-Inch Speed Dome

  • 1/2.8" progressive scan CMOS
  • 1920 × 1080 resolution
  • 15× optical zoom, 16× digital zoom
  • 120 dB true WDR (Wide Dynamic Range)
  • 3D intelligent positioning
  • Switchable TVI/AHD/CVI/CVBS video outputs
Còn hàng
1

Camera Speed dome TVI quay quét 2MP trong nhà

  • Cảm biến: 1/2.8’’ Progressive Scan CMOS
  • Ống kính 4mm~60 mm
  • Zoom quang 15X
  • Pan Range: 360°, Tilt Range: 0°-90° (Auto Flip)
  • Độ nhạy sáng cao: Color: 0.05Lux @(F1.6, AGC ON); B/W: 0.01Lux @(F1.6, AGC ON)
  • Tính năng giảm nhiễu số 3D DNR, chống ngược sáng kỹ thuật số DWDR
  • Điều khiển PTZ qua cáp đồng trục
  • Hổ trợ ghi nhớ 256 vị trí định sẵn
  • Tích hợp tính năng chống sét TVS 4000V
  • Nguồn: 12 VDC, Max. 14 W
  • Kích thước: Φ165 x 179.5 mm /Φ165 x 168 mm


DS-2AE4215T-D3

Camera

Image Sensor:



1/2.8" Progressive Scan CMOS

Effective Pixels:



1920(H)x1080(V)

Signal System:



PAL/NTSC

Minimum Illumination:



Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)

White Balance:



AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR

AGC:



Auto/Manual

BLC:



ON/OFF

HLC:



Support

WDR:



≥ 120 dB

Anti-shake:



On / Off

Shutter Time:



PAL: 1-1/10,000s
NTSC: 1-1/10,000s

Day& Night:



ICR

Digital Zoom:



16x

Privacy Masking:



8 privacy masks programmable

Auto Focus:



Auto / Semi-automatic / Manual

Lens

Focal Length:



5 mm to 75 mm, 15× Optical

Zoom Speed:



Approx. 2.4 s (optical, wide to tele)

Angle of View:



Horizontal field of view: 53.8° to 4.0° (wide to tele)
Vertical field of view: 31.9° to 2.3° (wide to tele)
Diagonal field of view: 60.4° to 4.6°(wide to tele)

Minimum Working Distance:



10-1500mm (Wide-Tele)

Aperture Range:



F 1.6 to F 3.5

Pan & Tilt

Pan Range:



360°endless

Pan Speed:



Pan manual speed: 0.1° to 100°/s
Pan preset speed: 100°/s

Tilt Range:



5°~90° (Auto Flip )

Tilt Speed:



Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s

Proportional Zoom:



Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:



256

Patrol:



10 patrols, up to 32 presets per patrol

Pattern:



5 patterns, with the total recording time no less than 10 minutes

Power-off Memory:



Support

Park Action:



Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None

PTZ Position Display:



ON/OFF

Alarm

Alarm Input:



2

Alarm Output:



1

Input & Output

Video Output:



Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)

UTC function:



UTC protocol (or HIKVISION-C protocol in previous DVR)

General

RS-485 Protocols:



HIKVISION, Pelco-P, Pelco-D, self-adaptive

Menu Language:



English

Power Supply:



12V DC

Power Consumption:



Max. 12 W

Working Temperature/Humidity:



-30 °C-65°C(-22°F-149°F)
90% or less

Protection Level:



TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensions:



DS-2AE4215T-D3 (Indoor): Ø 165 mm × 179.5 mm (Ø 6.5" × 7.1")
DS-2AE4215T-D3 (In-ceiling): Ø 165 × 168 mm (Ø 6.5" × 6.6")

Weight (approx.):



2 kg (4.41 Ib.)

Mount Option:



Various mounting modes optional



•    Sản phẩm nhập khẩu chính hãng HIKVISION
•    Cam kết 1 đổi 1 nếu sản phẩm có vấn đề về chất lượng hoặc do lỗi của nhà sản xuất.
•    Bảo hành trong suốt 24 tháng.
