Video
|
Video Format
|
Resolution
|
NTSC(fps)
|
PAL(fps)
|
Field Of View
|
|
1080P
|
30
|
25
|
Wide
|
|
720P
|
30/60
|
25/50
|
Wide
|
|
H.264 BP/MP/HP Level 5.1 With MP4 Mixed File Format
|
|
Record Mode
|
Video Video+Photo
|
|
Low Light
|
Auto Adjust Frame Rate for enough exposure time purpose
|
|
Distortion Correct
|
Better X/Y Correct
|
|
HiLight Tag
|
High Light Important Time point, used for Post processing
|
|
Loop Mode
|
To set up the storage mode according to the time interval set
|
|
Meter Mode
|
Center、Average、Spot
|
|
Professional
|
White Balance、ISO、Sharpness、Ev Comp、Color Pattern
|
|
Single
|
Photo Size
|
8MP Wide 4MP Wide 2MP Wide
|
|
Distortion Correct
|
Better X/Y Correct
|
|
Meter Mode
|
Center、Average、Spot
|
|
Professional
|
White Balance、ISO、Sharpness、Ev Comp、Color Pattern
|
|
Burst
|
Photo Size
|
8MP Wide 4MP Wide 2MP Wide
|
|
Burst Rate
|
15 pictures 1 second 15 pictures 2 second 15 pictures 3 second 10 pictures 1 second 10 pictures 2 second 10 pictures 3 second 5 pictures 1 second (default） 3 pictures 1 second
|
|
Distortion Correct
|
Better X/Y Correct
|
|
Meter Mode
|
Center、Average、Spot
|
|
Professional
|
White Balance、ISO、Sharpness、Ev Comp、Color Pattern
|
|
Timelapse
|
Shutter Mode
|
Timelapse Photo、Timelapse Video
|
|
Photo Size
|
4MP Wide/2MP Wide
|
|
Video Resolution
|
1080P/720P
|
|
Shutter Interval
|
Timelapse Photo
|
1s、3s、5s、10s、30s、60s、300s
|
|
Timelapse Video
|
0.5s、1s、1.5s、2s、2.5s、3s、5s
|
|
Meter Mode
|
Center、Average、Spot
|
|
Distortion Correct
|
Better X/Y Correct
|
|
Professional
|
White Balance、ISO、Sharpness、Ev Comp、Color Pattern
|
|
Playback
|
Decode Photo and Video Files in sd Card and Display it via LCD or HDTV
|
|
Setup
|
View
|
Up、Down、Auto
|
|
Default Mode
|
Video、Single、Burst、Timelapse
|
|
Driving Mode
|
The camera automatically starts and Shutter after the camera detects the motion
|
|
Vout Mode
|
Switching HDMI HD output and AV analog output
|
|
LED
|
Set it on or off
|
|
OSD
|
Turn on screen display on or off
|
|
Quickly Capture
|
Camera will Fastest speed boot and start shutter
|
|
Auto Off
|
Set Auto Power Off Time
|
|
Date And Time
|
Set Date And Time
|
|
Mic Gain
|
Set The Gain of Mic
|
|
Speaker Gain
|
Set The Gain of Speaker
|
|
Camera Reset
|
Reset Camera to default Settings
|
|
Wireless
|
BLE 4.0
|
Embedded bluetooth4.0
|
|
WIFI
|
802.11b/g/n、Mobile App Support
|
|
SSID
|
Support SSID Modify with Mobile App
|
|
KEY
|
Support KEY Modify with Mobile App
|
|
RESET
|
Reset SSID and KEY to system default
|
|
Display
|
HDMI
|
Display With
|
|
AV
|
AV output Use USB Interface
|
|
Embedded LCD
|
LCD With Touch Pannel
|
|
Lens Specification
|
1/3” CMOS
|
|
Full glass lens for high image quality，3mm@f3.0 140°Ultra-wide angle of view with less distortion
|
|
Platform
|
Ambarella new generation Video Processor A12，using advanced 28-nm silicon technology
|
|
Memory
|
2Gb DDR3、1Gb Nand Flash
|
|
Sensor
|
OV new generation Video Sensor OV4685
|
|
Battery
|
Battery Type
|
Replaceable、Rechargeable li-ion battery
|
|
Battery Parameters
|
1160mAh
|
|
Battery Life
|
2 hours (Varies with different video mode)
|
|
Audio
|
48kHz (sampling), AAC compression Advanced AGC (automatic gain control) Build-in microphone for wind noise reduce Single track/Beeps for shutter notify
|
|

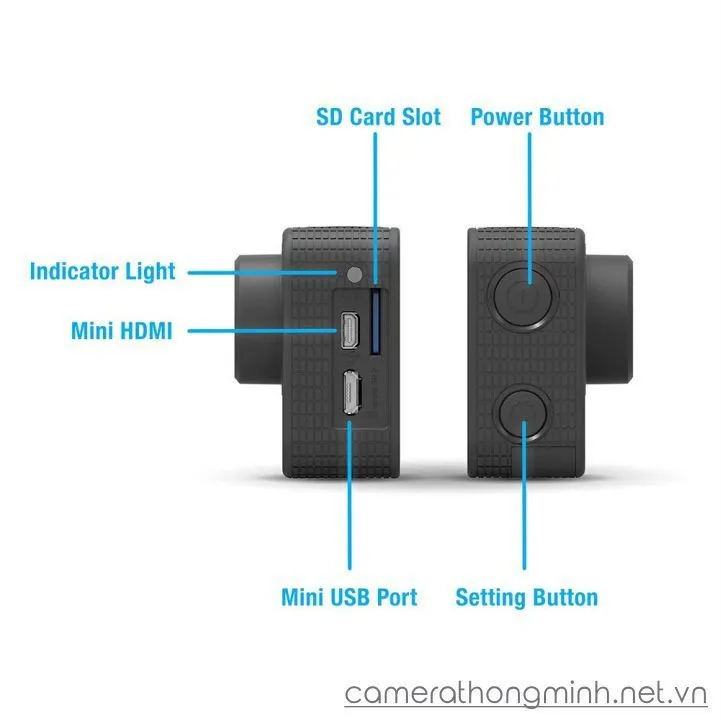

Interface
|
Micro USB
|
For charging when connect with power cable; For playback/file transportation/charging when connecting with PC; AV output
|
|
Micro HDMI
|
For play on HDTV via HDMI cable
|
|
MicroSD
|
Storage card
|
|
Storage
|
Standard
|
Class 10 or up to UHS-1 level Micro SD storage card
|
|
Capacity
|
4GB、8GB、16GB、32GB、64GB、128GB
|
|
Recording Time
|
Varies with different resolution and frame rate
|
|
Photo/Video Preview/Playback /Setup
|
App for Mobile
|
For iOS and Android system
|
|
Device
|
Live view, playback, recording, configuration, video file editing, and one-touch share to social media are supported.
|
|
Protection Grade
|
Camera
|
40 meters diving with waterproof case
|
|
Remote
|
IP66
|
|
Operating Conditions
|
Temperature: -20° C to 45° C;
|
|
Dimensions
|
58mm(W)×45mm(H)×20.6(W)
|
|
Weight
|
About 99.7g
|
-1.710.000đ
